UEW(QAL)155 CLASS 0.15mm-1.0mm (Swg38-19/ Awg35-19)
UEW(QAL)155 CLASS 0.15mm-1.0mm
(Swg38-19/ Awg35-19)

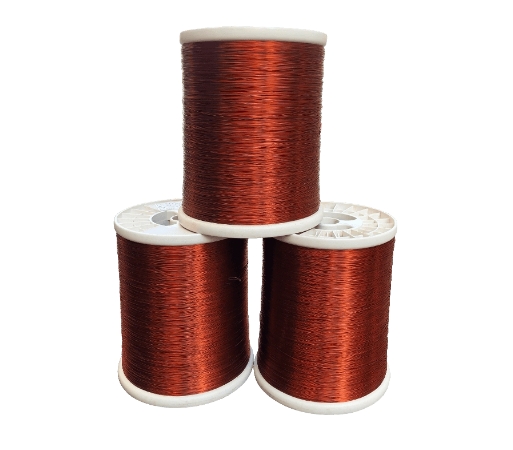

The UEW(QAL)155 CLASS enameled aluminum
wire, with a diameter range of 0.15mm to 1.0mm, is designed for
high-temperature applications up to 155°C. It features polyurethane insulation
for excellent thermal and electrical performance, making it suitable for
motors, transformers, and other demanding environments.
Trust LQ TECHNOLOGIES(WUXI)LTD for
enameled wires that deliver reliable performance. Our products are designed to
withstand high temperatures and mechanical stress, making them ideal for a wide
range of industrial applications.
size (R20)
Conductor nominal diameter / mm
Conductor tolerance / mm
Minimum film thickness / mm
Maximum outer diameter / mm
Level 1
Level 2
Level 3
Level 1
Level 2
Level 3
0.250
0.004
0.017
0.032
0.048
0.281
0.297
0.312
0.280
0.004
0.018
0.033
0.050
0.312
0.329
0.345
0.315
0.004
0.019
0.035
0.053
0.349
0.367
0.384
0.355
0.004
0.020
0.038
0.057
0.392
0.411
0.428
0.400
0.005
0.021
0.040
0.060
0.139
0.459
0.478
0.450
0.005
0.022
0.042
0.061
0.491
0.513
0.533
0.500
0.005
0.024
0.045
0.067
0.544
0.566
0.587
0.560
0.006
0.025
0.047
0.071
0.606
0.630
0.653
0.630
0.006
0.027
0.050
0.075
0.679
0.704
0.728
0.710
0.007
0.028
0.053
0.080
0.762
0.789
0.814
0.800
0.008
0.030
0.056
0.085
0.855
0.884
0.911
0.900
0.009
0.032
0.060
0.090
0.959
0.989
1.018
1.000
0.010
0.034
0.063
0.095
1.062
1.094
1.124
1.120
0.011
0.034
0.065
0.098
1.184
1.217
1.248
1.250
0.013
0.035
0.067
0.100
1.316
1.349
1.381
1.400
0.014
0.036
0.069
0.103
1.468
1.502
1.535
1.600
0.016
0.038
0.071
0.107
1.670
1.706
1.740
1.800
0.018
0.039
0.073
0.110
1.872
1.909
1.944
2.000
0.020
0.040
0.075
0.113
2.074
2.112
2.148
2.240
0.022
0.041
0.077
0.116
2.316
2.355
2.392
2.500
0.025
0.042
0.079
0.119
2.578
2.618
2.656
2.800
0.028
0.043
0.081
0.123
2.880
2.922
2.961
3.150
0.032
0.045
0.084
0.127
3.233
3.276
3.316
3.550
0.036
0.046
0.086
0.130
3.635
3.679
3.721
4.000
0.040
0.047
0.089
0.134
4.088
4.133
4.176
4.500
0.045
0.049
0.092
0.138
4.591
4.637
4.681
5.000
0.050
0.050
0.094
0.142
5.093
5.141
5.186
Note 1: The minimum film diameter is
required to be calculated with the minimum film thickness.
Note 2: For the intermediate dimension of
the nominal diameter of the conductor, the minimum film thickness
corresponding to the nominal diameter of the larger conductor shall be taken.
Product Specifications
The UEW(QAL)155 CLASS Enameled
Aluminum Round Wire boasts a range of technical specifications that
make it ideal for high-performance electrical applications. Below are the key
product parameters:
Temperature Class: Rated for 155°C,
designed for long-term use in high-temperature environments.
Conductor Material: Aluminum
conductor, offering excellent electrical conductivity and reduced weight
compared to copper.
Conductor Size Range: Available in
sizes from 0.15mm to 1.0mm, catering to both fine and larger diameter
applications.
Mechanical Strength: Robust
mechanical properties, with the ability to endure bending and winding
without damaging the enamel coating.
Electrical Insulation: Superior
dielectric strength, capable of withstanding high voltages and preventing
electrical leakage.
Product Features
The UEW(QAL)155 CLASS Enameled
Aluminum Round Wire stands out due to its remarkable performance
characteristics that meet the demanding requirements of various electrical
applications:
High-Temperature Resistance: With a
temperature rating of 155°C, the wire ensures long-term stability and
reliability even under prolonged exposure to elevated temperatures.
Durability and Longevity: The
polyurethane enamel coating is resistant to moisture, solvents, and
chemicals, which enhances the wire's resistance to environmental factors
and extends its operational life.
Mechanical Flexibility and Strength:
The wire’s flexibility allows it to undergo winding and bending processes
without cracking, while the strong enamel coating ensures mechanical
integrity.
Superior Electrical Insulation: The
wire's enamel coating provides excellent electrical insulation, preventing
breakdowns at high voltages and ensuring safe operation in electrical
circuits.
Customization: Available in various
conductor sizes and enamel thicknesses, it can be tailored to meet
specific application needs.
Product Applications
The UEW(QAL)155 CLASS Enameled
Aluminum Round Wire is versatile and can be used in a wide range of
industries where high-performance electrical components are required:
Electric Motors: Ideal for winding
in electric motors due to its excellent thermal resistance and mechanical
strength.
Transformers: The wire's electrical
insulation and temperature stability make it perfect for use in
transformers, ensuring safety and efficiency.
Electronics Manufacturing: Suitable
for fine wire applications in small-scale electronics, including coils,
inductors, and other components that require precise winding and
reliability.
Industrial Equipment: Used in
various types of industrial electrical equipment that demand both
high-temperature performance and durable electrical insulation.
Automotive and Aerospace: Due to
its flexibility, strength, and resistance to harsh environments, it is
also applicable in automotive and aerospace industries for
high-performance wiring solutions.
Why Choose Us
Here are the key reasons why the UEW(QAL)155
CLASS Enameled Aluminum Round Wire is the best choice for your
high-performance electrical needs:
High-Quality Materials: We use
top-grade aluminum and durable polyurethane enamel coatings to ensure the
wire performs well in extreme environments.
Customizable Solutions: We
understand that different applications require specific solutions, and we
offer customization in terms of conductor size, enamel thickness, and
packaging to suit your unique requirements.
Reliability and Durability: With
its resistance to high temperatures, chemicals, moisture, and mechanical
stress, our wire is built to last, reducing maintenance costs and
extending the operational lifespan of your equipment.
Industry Compliance: Our wires
adhere to industry standards, ensuring that they are compatible with
various electrical systems and manufacturing processes.
Comprehensive Support: We provide
expert guidance and customer support to help you choose the right wire for
your specific application, ensuring smooth integration into your
manufacturing or operational processes.
Choose the UEW(QAL)155 CLASS
Enameled Aluminum Round Wire for a reliable, high-performance solution
that meets the demands of modern electrical systems.
